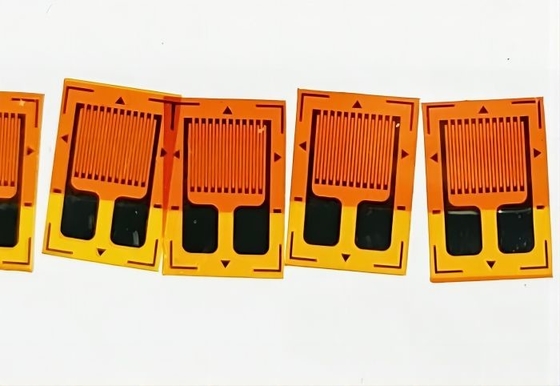

With a hysteresis of ±0.05% Full Scale, the Foil Strain Gauge is able to provide precise measurements of the strain of an object. This makes it ideal for use in applications where accuracy is essential, such as in the aerospace, automotive, and construction industries.
The Foil Strain Gauge is designed to operate in a wide range of temperatures, from －20 to ＋80℃. This means it can be used in both hot and cold environments without any loss of accuracy or performance.
Measuring just 5 mm x 5 mm in size, the Foil Strain Gauge is compact and easy to install. It can be easily attached to the surface of an object using adhesive or solder, making it a versatile and flexible solution for a wide range of applications.
There are two types of strain gauges available: full bridge strain gauge and half bridge strain gauges. The Foil Strain Gauge operates on a full bridge circuit, which means it is able to measure the strain of an object more accurately than a half bridge strain gauge.
In summary, the Foil Strain Gauge is a highly accurate and reliable load cell sensor that is designed for use in a wide range of applications. Its compact size, wide temperature range, and full bridge circuit make it a versatile and flexible solution for measuring the strain of an object.
| Technical Parameter | Value |
|---|---|
| Silicon | 4.7×0.22×0.02 |
| Operational Temperature | -20～+80℃ |
| Dimensions | 5mm x 5mm |
| Creep | ±0.05% Full Scale |
| Feature | Micro Pressure Sensor |
| Measurement Range | 0-1000 Microstrain |
| Usage | Load Cell Sensor |
| Working Temperature | -20～+80℃ |
| Hysteresis | ±0.05% Full Scale |
| Carrier Material | Phenolic Aldehyde/ Polyimide/ Epoxy |
The BF Foil Strain Gauge can be used in a variety of load cell sensors, making it an essential product in the field of engineering. Its hysteresis of ±0.05% Full Scale makes it an ideal product for measuring small changes in pressure, providing accurate and reliable readings every time.
The dimensions of the BF Foil Strain Gauge are 5mm x 5mm, making it small and compact. This makes it perfect for use in applications where size and space are a concern. Its compact size does not compromise its accuracy and reliability, making it a versatile product that can be used in a wide range of applications.
The BF Foil Strain Gauge is suitable for a range of product application occasions and scenarios. It can be used in the development of pressure sensors for automotive applications, such as measuring tire pressure, engine oil pressure, and fuel pressure. It can also be used in the development of pressure sensors for medical devices, such as blood pressure monitors and respiratory devices. Additionally, it can be used in the development of pressure sensors for industrial applications, such as monitoring fluid pressure in pipelines and tanks.
In summary, Top Sensor's BF Foil Strain Gauge is a highly durable and reliable product that features Half Bridge Strain Gauges and can measure strain in a linear manner. Its hysteresis of ±0.05% Full Scale makes it an ideal product for measuring small changes in pressure, providing accurate and reliable readings every time. Its compact size and versatility make it suitable for use in a wide range of applications, including automotive, medical, and industrial applications.
