The load cell utilizes full bridge strain gauges, resulting in accurate and reliable measurements. These linear strain gauges are highly sensitive, allowing for precise detection of even small changes in weight or force. The load cell's resistance strain gauge technology ensures consistent and repeatable measurements, with a repeatability of ≤0.01%F.S.
In addition to its precision, the load cell also boasts excellent insulation resistance, with a rating of ≥5000 M Ω(100VDC). This ensures reliable operation even in harsh environments or with extended use.
With an operating temperature range of -10 ℃-60 ℃, this load cell can be used in a variety of settings and conditions. Whether you need to measure weight in a cold storage facility or in a hot manufacturing plant, this load cell can handle it all.
Overall, our Strain Gauge Load Cell is a top-of-the-line choice for any application requiring accurate and reliable weight or force measurements. Its use of full bridge strain gauges, linear strain gauges, and resistance strain gauge technology make it a standout product in the industry.
| Technical Parameter | Description |
|---|---|
| Linearity | 0.2 %FS |
| Compensated Temperature | -10℃-50℃ |
| Features | High Precision Good Performance |
| Insulation Resistance | ≥5000 M Ω(100VDC) |
| Material | Alloy Steel Or Alloy Aluminum |
| Mounting Type | Screw Mount |
| Operating Temperature | -10 ℃-60 ℃ |
| Repeatability | ≤0.01%F.S. |
| Hysteresis | ≤0.02%F.S. |
| Temperature Effect On Zero | ≤0.02%F.S./10℃ |
| Strain Gauge Type | Full Bridge Strain Gauges |
| Shear Strain Gauge | Yes |
| Torque Strain Gauge | No |

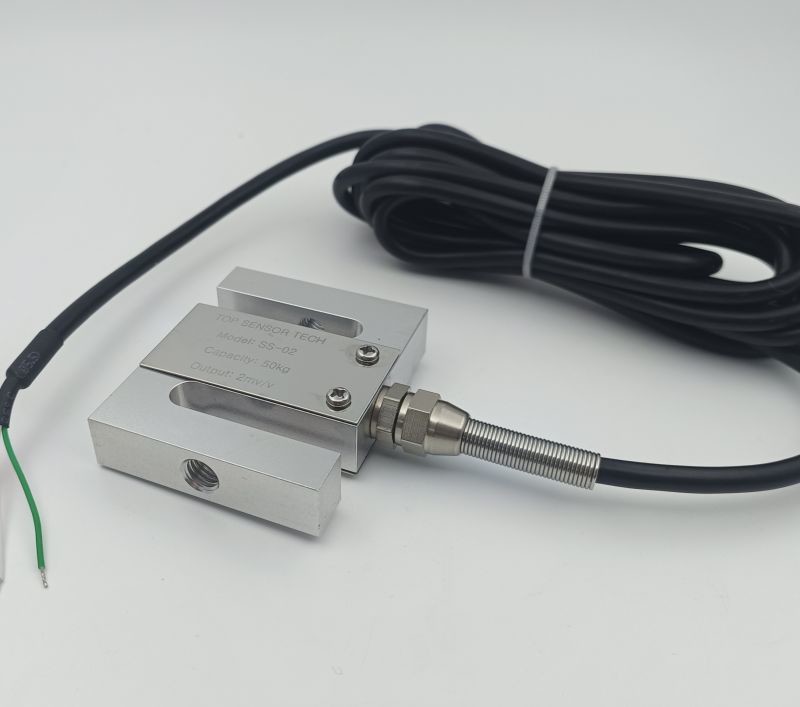

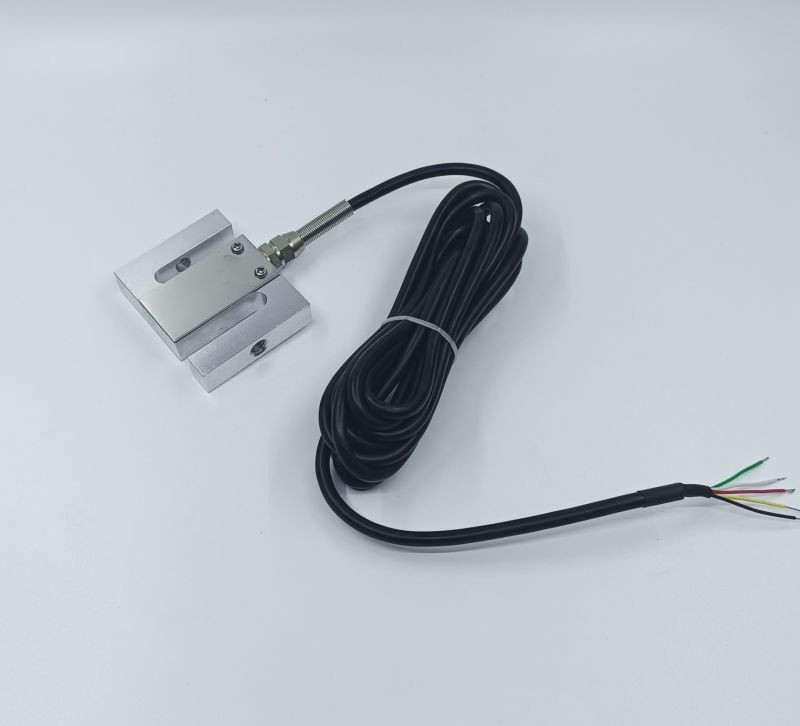

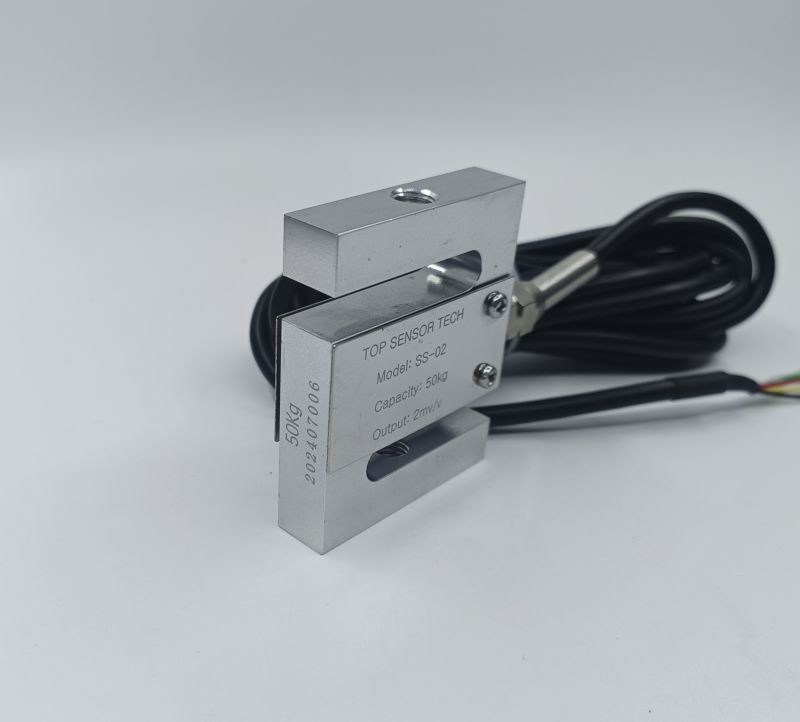

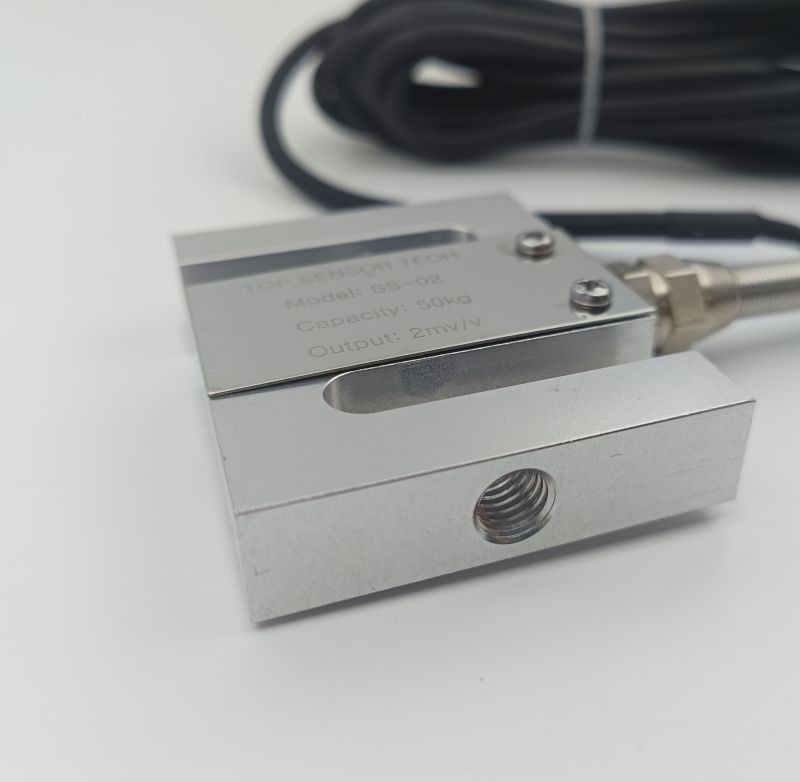

The SS-02 load cell is perfect for use in various industrial applications, such as weighing, force measurement, tension, and compression. The load cell is commonly used in industrial processes like manufacturing, construction, and transportation. The high precision and good performance of the SS-02 load cell make it an ideal choice for applications that require accurate measurement and monitoring of weight and force.
The SS-02 load cell has a repeatability of ≤0.01%F.S. This means that the load cell can provide consistent and precise measurements, even if the load is repeatedly applied. The insulation resistance of the load cell is ≥5000 M Ω(100VDC), which ensures that the load cell can withstand the harsh industrial environment and provides long-lasting performance.
The temperature effect on zero of the SS-02 load cell is ≤0.02%F.S./10℃, which means that the load cell can provide accurate and reliable measurements even in extreme temperature conditions. The load cell is designed to work under a wide range of temperature conditions, making it suitable for use in various applications.
In conclusion, Top Sensor's SS-02 load cell is a reliable and high-performing product that is suitable for various industrial applications. The load cell's advanced technologies, such as the shear strain gauge, resistance strain gauge, and high precision, make it an ideal choice for applications that require accurate weight and force measurement. The load cell is made of high-quality materials and is designed to withstand the harsh industrial environment, providing long-lasting performance.
